F43 & F45 Narrow-Connector Crowd Control Barricades

American-made steel barricades in 43-inch and 45-inch heights, with narrow connectors and four replaceable foot options.

The F43 and F45 share the same basic frame design and coupling system. Choose the height, length and foot style that suits your event, venue or existing barricade inventory.

Request an F43/F45 Quote | Buy Barricades | Rent Barricades

Call 1-800-394-9294 for current pricing and availability.

F43 vs. F45: Two Heights, Matching Connectors

Model	Height	Standard Length	Connectors
F43	43 inches	8' 7"	Narrow
F45	45 inches	8' 7"	Narrow

Both heights are also available in 6' 7" and 4' 7" lengths.

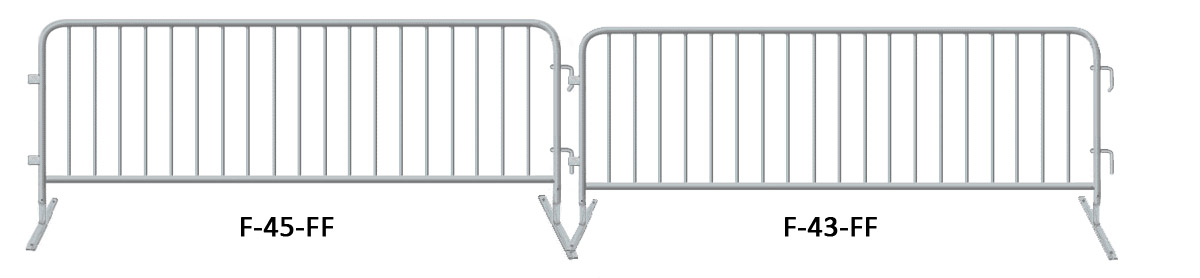

The connectors remain at the same height above the ground. The F45 frame extends 2 inches higher, so its connectors sit 2 inches farther from the top while maintaining the same coupling height.

F43 and F45 barricades connect directly to one another. You can mix the two heights within the same barricade layout.

Bridge-Foot and Flat-Foot Versions

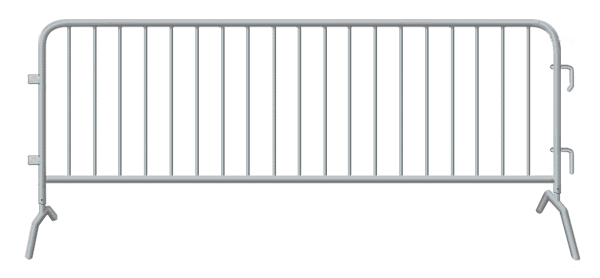

F43 / F45 Bridge Foot Bolt-on, replaceable bridge feet

F43-FF / F45-FF Flat Foot Bolt-on, replaceable flat feet

Four Replaceable Foot Options

• Bridge feet: A practical choice for uneven terrain and softer surfaces.
• Flat feet: A low-profile option for paved surfaces, pedestrian queues and entrances.
• Flat feet with rubber pads: A padded flat-foot configuration.
• Roller feet: Useful when barricades need frequent repositioning.

All four foot configurations are bolt-on and replaceable. If a foot becomes damaged or worn, it can be replaced without discarding an otherwise serviceable barricade.

Replacement feet are available directly from Friedrichs. We can also make replacement feet for any barricade model on the market.

F45 Weights by Foot Configuration

Bridge Foot	51 lbs.
Flat Foot	58 lbs.
Flat Foot With Rubber Pads	58 lbs.
Roller Foot	59 lbs.

Weight varies with size and configuration. Contact us for the weight of your selected height, length and foot style.

Adding to an Existing Narrow-Connector Inventory?

F43 and F45 narrow connectors are designed for compatibility with many import-style barricades. If you are adding to equipment from another manufacturer, send photographs and measurements of the existing couplings before ordering.

Contact Friedrichs to check compatibility and select the appropriate configuration.

For access openings, F43/F45 barricade gates work with either height in this family.

Galvanized and Optional Powder-Coated Finishes

The standard finish is hot-dip galvanized for corrosion protection. Optional powder-coated finishes are available for an additional charge when a particular color or appearance is needed.

The barricade is galvanized first, then powder coated as an additional exterior finish. Painted finishes may show wear from repeated stacking, transportation and handling.

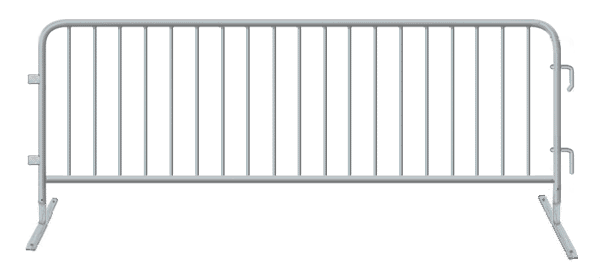

6' 7" F45-FF with optional red powder-coated finish.

American Manufacturing and Parts Support

Friedrichs manufactures its steel crowd control barricades in the United States. The company has been in business since 1938 and has manufactured steel barricades since the 1960s.

Replaceable feet and ongoing parts support help customers maintain their inventories over years of professional use.

Request an F43/F45 Quote

Tell us your preferred height, length, foot style, quantity, finish, delivery address and required date. We will provide current pricing, availability and freight information.

Our standard steel barricades ship fully assembled and ready to use. We deliver throughout the 48 continental states.
